Qhov tseem ceeb:
●Externa Kav hlau txais xov rau LTE thiab WIFI
● 2.4GHz (300Mbps & 5.8GHz (867Mbps)) (yeem) Dual-band WIFI
●1 * RJ-45 rau WAN Chaw nres nkoj & 2 * RJ-45 rau LAN Chaw nres nkoj (Ethernet 100/100Mbps Base-T)
● LTE Downlink mus txog 150Mbps Uplink mus txog 50Mbps
● Txog 32 tus neeg siv
●IPV6/IPV4

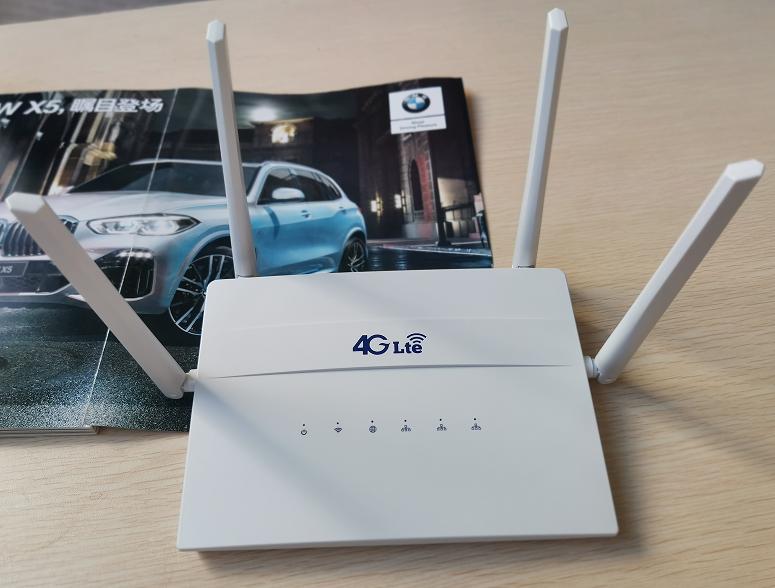

MPC630B yog ASR 4G CAT4 Sab Hauv Tsev WIFI CPE, Nws yog tsim los ntawm ntau lub ntiaj teb pov thawj chipset kev daws teeb meem, kev koom ua ke nrog cov thev naus laus zis hauv LTE CAT4, WIFI4 & WIFI5 (Optional) Hotspot, Ethernet WAN / LAN thiab Web-UI kev tswj hwm.the LTE thiab WIFI siv lub kav hlau txais xov sab nrauv tsim, ua rau cov qauv muaj zog thiab ruaj khov, Nws yog ib qho yooj yim rau kev sib txuas thiab yooj yim nqa hauv tes. Nws tuaj yeem muab kev pabcuam siab ceev rau 32 tus neeg siv ib txhij. Txhua yam koj yuav tsum tau ua yog ntxig rau daim npav SIM, tom qab ntawd koj tuaj yeem txaus siab rau WiFi nrog koj cov phooj ywg nrog lub SIM card router. Choj WiFi thiab qhia lub network nrog koj tsev neeg thiab cov phooj ywg kom muaj kev nyab xeeb tiav hauv tsev so lossis lwm qhov chaw pej xeem. kuj zoo rau sab nraum zoov video koob yees duab project.
MPC630B ASR 4G CAT4 Sab Hauv Tsev WIFI CPE LTE siv ntau qhov kev teeb tsa thiab siv dav hauv cov teb chaws thoob ntiaj teb..the 4g wireless router download ceev yog txog 150 Mbps, upload ceev txog li 50 Mbps thiab wireless kis ceev yog 300 Mbps&867Mbps(Optional). Nws muaj 4 lub kav hlau txais xov ua haujlwm siab, nruab nrog 1 * WAN, 2 * Lan thiab 1 * qhov sib txuas rau SIM phaib, pob khoom tau muab nrog 12V 1A fais fab mov. Ua haujlwm kub: -10 degree ~ 50 degree rau kev cia: -20 degree ~ 60 degree rau kev ua haujlwm
Interface ntawm MPC630B
Khoom Specification
|
Cua Interface |
Technical Standard |
4G (cat4) / 3G |
|
Ntau zaus |
EU: |
|
|
WIFI |
2.4G, WIFI 2T2R 802.11 b/g/n (300 Mbps); 5.8G, WIFI2T2R 802.11 ac (867Mbps) (yeem) |
|
|
Kev ua tau zoo |
Cov ntaub ntawv ntau tshaj |
CAT4: Downlink mus txog 150Mbps Uplink mus txog 50Mbps |
|
kho vajtse |
MIMO |
Kev them nyiaj yug: MIMO2 * 2 |
|
WiFi Chipset |
CPU: MT762x + MTK7612 |
|
|
Cov neeg siv WIFI |
Max cov neeg siv 32 |
|
|
Nco |
64 Mb+128Mb |
|
|
Ethernet |
1 * RJ-45 rau WAN Chaw nres nkoj (Ethernet 100/100Mbps Base-T) |
|
|
RJ 11 |
Tsis muaj kev txhawb nqa |
|
|
USIM/SIM |
2FF (nano) SIM daim npav |
|
|
Roj teeb |
Tsis muaj kev txhawb nqa |
|
|
Hwj chim |
AC / DC Adapter |
|
|
LED |
1 * System (Power) / 1 * WIFI / 1 * LTE (4G) / 1 * WAN / 2 * LAN |
|
|
Kav hlau txais xov |
Externa Kav hlau txais xov rau LTE thiab WIFI |
|
|
Khawm |
Pib dua tus yuam sij |
|
|
IP RATING |
NA |
|
|
Software |
Kev tswj hwm |
Txhim kho firmware |
|
Web Management Interface |
||
|
Local Syslog |
||
|
Auto Kev Npaj |
||
|
SNTP Sijhawm Synchronization |
||
|
Ntau tus neeg siv qib |
||
|
Telnet |
||
|
Cov txheej txheem |
ARP/RARP (RFC 826/903) |
|
|
SNTP (RFC 2030) |
||
|
DHCP/PPPoE |
||
|
IPV6/IPV4 |
||
|
HTTP Server rau Web Management |
||
|
TFTP/HTTP rau Auto Provisioning |
||
|
DNS/DNS SRV (RFC1706 thiab RFC 2782) |
||
|
IEEE 802.1Q VLAN / 802.1p thiab IP DSCP |
||
|
Daim ntawv thov |
Txhawb LTE |
|
|
Txhawb NAT hom thiab Choj hom |
||
|
Txhawb DDNS |
||
|
MAC chaw nyob cloning |
||
|
NAT Traversal los ntawm STUN |
||
|
Built-in Wired ceev NAT Router |
||
|
DHCP Server thiab Client |
||
|
Kev txheeb xyuas qhov teeb meem IP |
||
|
Chaw nres nkoj xa khoom, DMZ, SuperDMZ |
||
|
802.1Q VLAN/802.1p, DSCP, Rate Limiting |
||
|
VPN (PPTP, L2TP) Passthrough |
||
|
SNTP |
||
|
IGMPv 2 |
||
|
Firewall (SYN Flooding, IP Spoofing, Smurf Attack, Ping of Death, DoS) |
||
|
Wireless |
802.11 b/g/n/ac kev them nyiaj yug |
|
|
2 SSID (1 SSID @b/g/n 1 SSID @ac) |
||
|
Static WEP (64/128 ntsis) |
||
|
Dynamic WEP (64/128 ntsis) |
||
|
AES (CCMP/TKIP) |
||
|
MAC ntawv pov thawj |
||
|
WEP daim ntawv pov thawj |
||
|
WPA-PAK/WPA-PSK(2.0) |
||
|
WPA/WPA 2 |
||
|
AP Isolation thiab MBSSID AP Isolation |
||
|
WDS |
||
|
Chaw nres tsheb daim ntawv teev npe |
||
|
MAC Filter (ntxiv los ntawm wired MAC Filter) |
||
|
Daim ntawv pov thawj |
• txhawb-FCC ntawv pov thawj |
|
|
Ib puag ncig |
Ua haujlwm kub |
Ib txwm: -10 degree rau +50 degree |
|
Cia Kub |
-20 degree C rau +60 degree C |
|
|
Cov av noo |
10%~ 90% |
